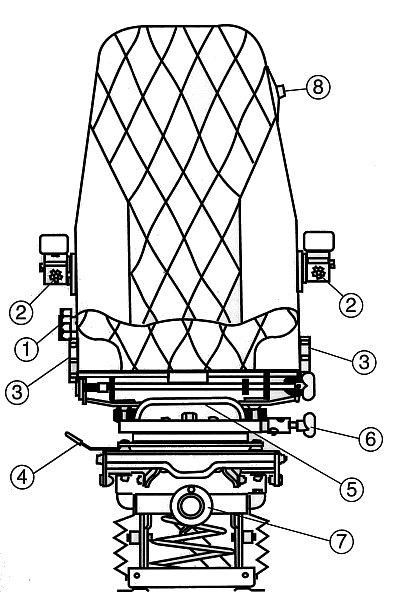

General Instructions

(As shown on Railroad High Back, 4 way adjustable Lumbar, Heavy Duty Low Profile Mechanical Suspension, Height Riser Turntable and Arm Rests)

  1. TWO – WAY LUMBAR HORIZONTAL ADJUSTMENT HANDLE

    Turn clockwise to increase lumbar - Turn counter clockwise to decrease lumbar

  2. ARM VERTICAL ADJUSTMENT KNOB

    Turn clockwise to raise arm angle - Turn counter clockwise to lower arm angle

  3. SEAT BACK ANGLE ADJUSTMENT HAND WHEEL

    Turn clockwise to lower back - Turn counter clockwise to raise back

  4. FOUR – POSITION HEIGHT ADJUSTMENT

    Push lever forward and pull seat up to raise - Push lever forward and place body weight on seat to lower - Release lever to auto lock in position

  5. TRACK FORE& AFT ADJUSTMENT HANDLE

    To unlock pull up on handle adjust seat, release handle to lock

  6. SWIVEL ROTATIONAL ADJUSTMENT HANDLE

    Rotate handle counter clockwise to unlock and swivel seat. To lock, rotate handle clockwise, 360 rotation, [4] locks@ 90°

  7. DRIVER COMFORT DIAL

    Rotate dial clockwise to firm ride comfort - Rotate dial anticlockwise to soften ride comfort

  8. FOUR – WAY LUMBAR VERTICAL ADJUSTMENT HANDLE

    Move up to raise – move down to lower
